Having a smart thermostat isn’t just smart for spending less on heating expenses. It can also alert you if there’s a problem with your furnace.

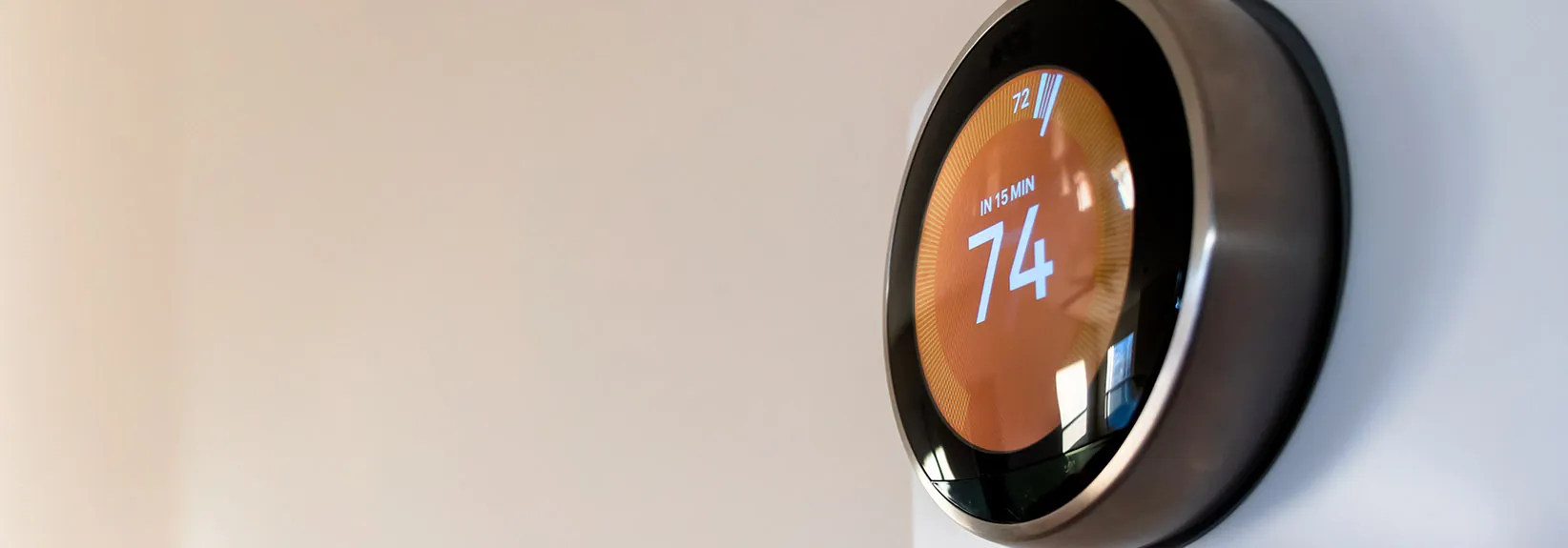

The Google Nest has a feature called Furnace Heads Up, which will let you know if it detects a problem with your heating system. You’ll see the alert on the thermostat, in the app and in your monthly Nest Home report.
One of the most typical issues is: “Nest noticed that your furnace shuts down within 15 minutes of heating.” Here’s what's doing on and how you can fix it.
Your Furnace is Short Cycling
When you see the message “Nest noticed that your furnace shuts down within 15 minutes of heating,” that means your furnace is short cycling. Short cycling is when the furnace turns on for a brief period of time then turns off. This HVAC game of red light, green light stops your home from heating up and can increase your energy bill. It can also increase wear and tear on your furnace. It may also be more susceptible to breaking down and may even need to be replaced more quickly.
Without Furnace Heads Up, you might not notice your furnace is turning on and off often, because its blower fan might keep running. This feature can pick up on power interruptions that happen during short cycling.
How Do I Keep My Furnace from Short Cycling?
There are a few simple ways you can prevent your furnace from short cycling.
Change Your Air Filter Regularly
If your air filter is too dirty, it will limit airflow. Your furnace will then shut off prematurely to prevent overheating. We encourage changing flat filters once a month, and pleated filters every three months. It’s simple to stay on top of changing your filter by setting up a Filter Reminder on your thermostat.
If you’ve changed your filter after getting a Furnace Heads Up alert, you can run a test to see if that repairs the problem.
- Press the ring to bring up the Quick View menu, where you’ll choose "settings" and then "equipment."
- The thermostat will display the wires connected to it. Choose "continue."
- You’ll see system components shown. Hit "test."
- Choose "Furnace Heads Up" and follow the instructions. Your furnace will run a 15-minute heating check and tell you the results when it’s done.
Google says if the filter is clean or if your furnace didn’t pass the test, something else could be wrong that requires professional help. If this happens, call A1 Chesney Service Experts at 587-315-5271 for furnace repair.
Clean or Replace Your Furnace’s Flame Sensor
Having a dirty or malfunctioning flame sensor is another top reason why your furnace is short cycling. You can tell if there’s a problem by watching your furnace as it starts up. Here’s what to look for.
- Remove the door from your furnace so you can look at the burners. If you have a viewport in the furnace door, you may not need to remove the door for this.
- Turn on the furnace by setting the thermostat to a higher indoor temperature.
- When you turn on the heat, the fan will turn on first. You should notice it turn on.
- The ignitor will begin to glow. The ignitor is either on the left or right of the burners, but it depends on the furnace model.
- Once the ignitor is warm enough, the gas will turn on and the burners will ignite.
- If the flame sensor can’t sense a flame, it’s usually due to the fact it’s dirty or faulty. Your furnace will then turn off as a safety precaution. If your furnace is short cycling, you'll notice the flame and fan shutting off after a couple of seconds.
If you’re wondering how flame sensors could get dirty being bathed in fire continuously, a combination of moisture and chemicals in the air form a thin layer of carbon on the surface. Cleaning a dirty flame sensor will stop the short cycling problem. This job is best left to an Expert. That's due to the fact an HVAC professional like A1 Chesney Service Experts will be able to clean it without damaging it or be able to tell you if you need a new one.
Check Your Furnace’s Exhaust Pipe Often
Your high-efficiency furnace vents combustion gases outside through a PVC pipe. This pipe can get blocked by snow or bird nests, so you’ll want to make sure it’s always clear. If the pipe gets blocked, it can result in your furnace overheating. It could also result in carbon monoxide flowing back into your home, creating a potentially life-threatening situation.
However, modern furnaces have a pressure switch that typically will prevent these situations from occurring. Households with young children will often find their kids have jammed toy cars, sticks or nuts into the exhaust if it’s in an area that's accessible by little hands. Even this little amount is enough to trigger the pressure switch. The irregular flow of air into and out of the system triggers the pressure switch, which shuts down the burners. If this is the underlying cause of your problem, you will encounter short cycling and a furnace error code indicating the pressure switch was tripped.
An Expert HVAC technician from A1 Chesney Service Experts can look up the codes for you and diagnose the problem. Unfortunately, Nest has not evolved to the point where it can interpret the error codes furnace manufacturers create, so you will still require a pro to assist you.
Let the Experts Handle Your Short Cycling Furnace
If you get the message, “Nest noticed that your furnace shuts down within 15 minutes of heating,” you know what to do. At A1 Chesney Service Experts, our Experts have the expertise to fix any furnace problem quickly and affordably. What’s even better is that we stand behind our repairs with a 100% Satisfaction Guarantee for one year.* To request your appointment, call us at 587-315-5271 or schedule online.
